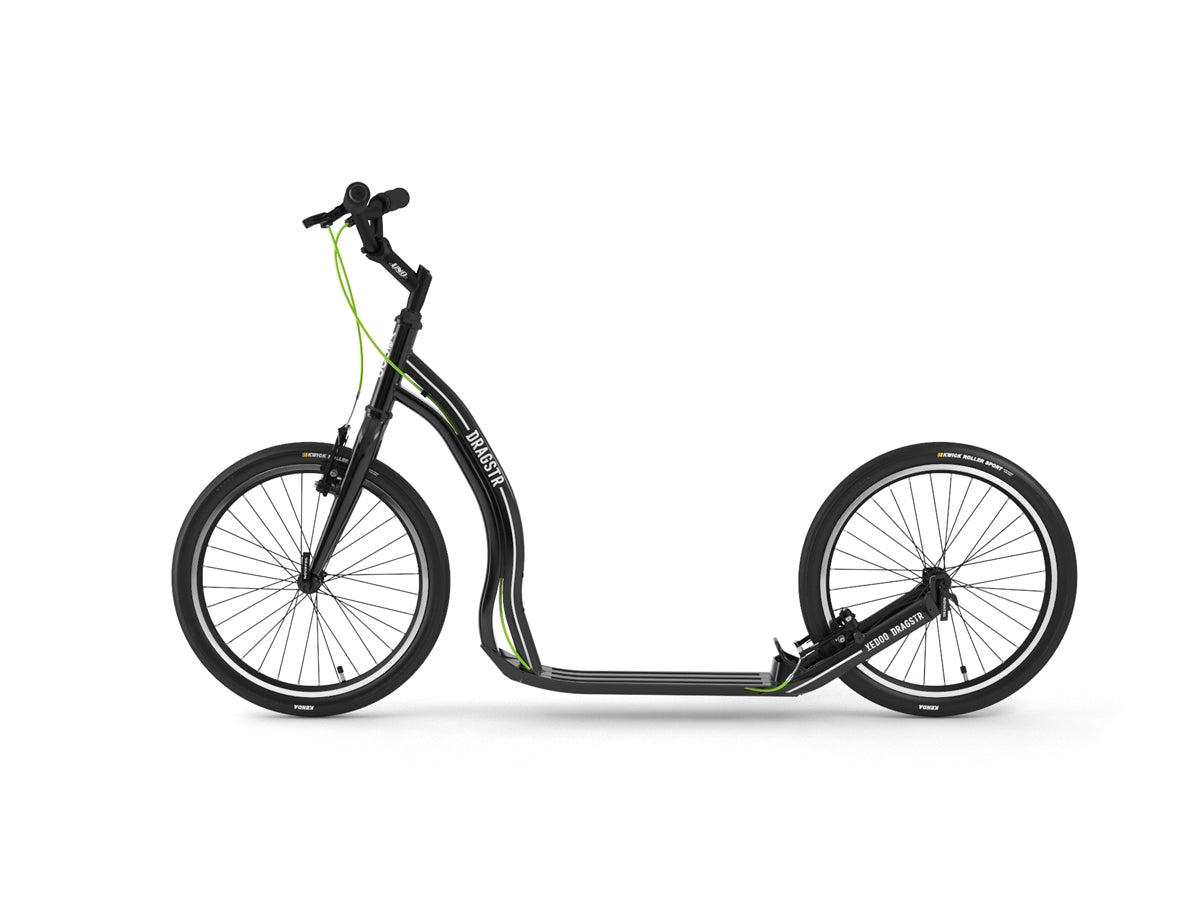

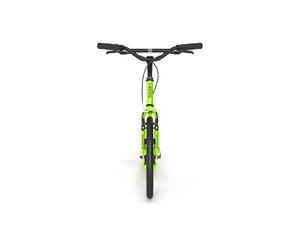

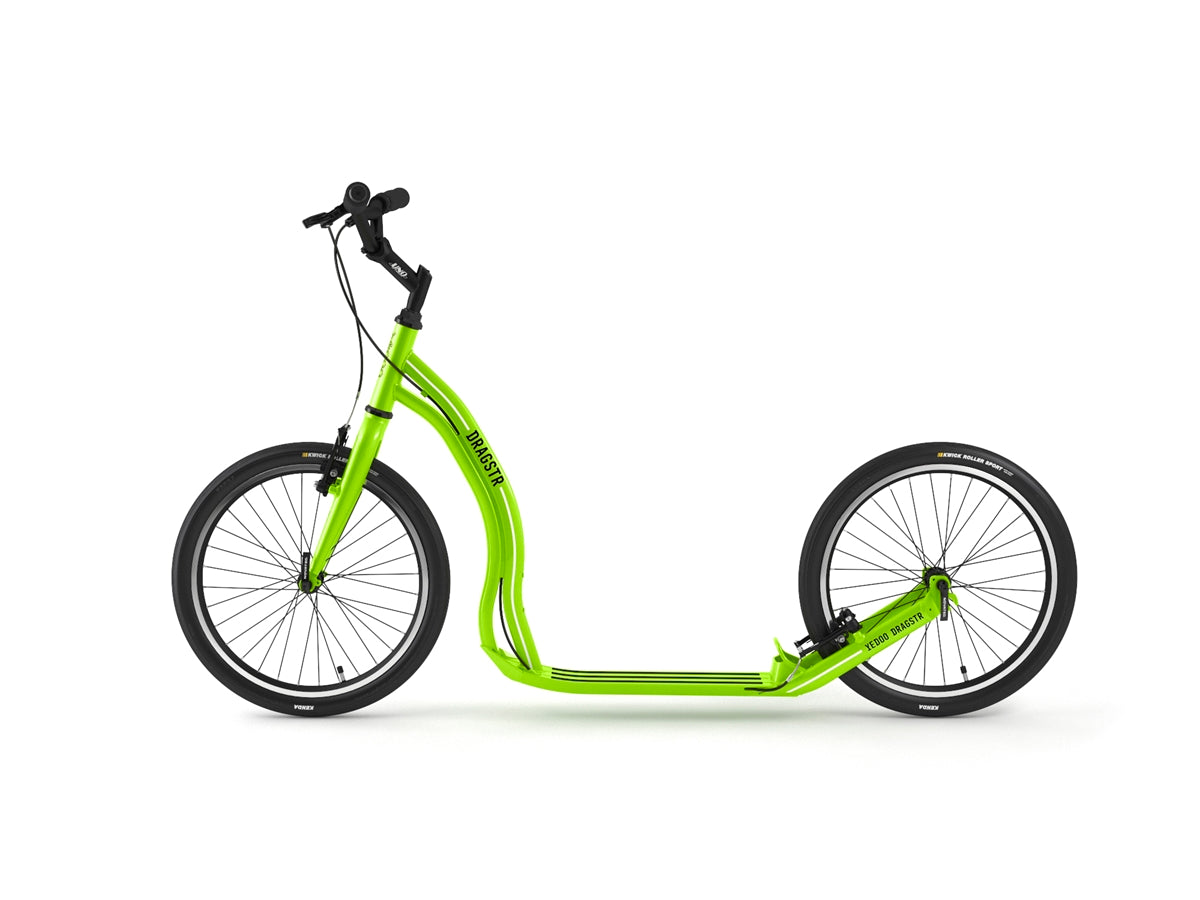

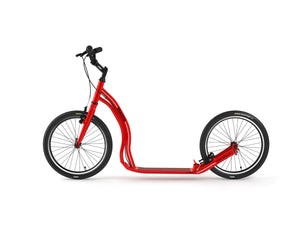

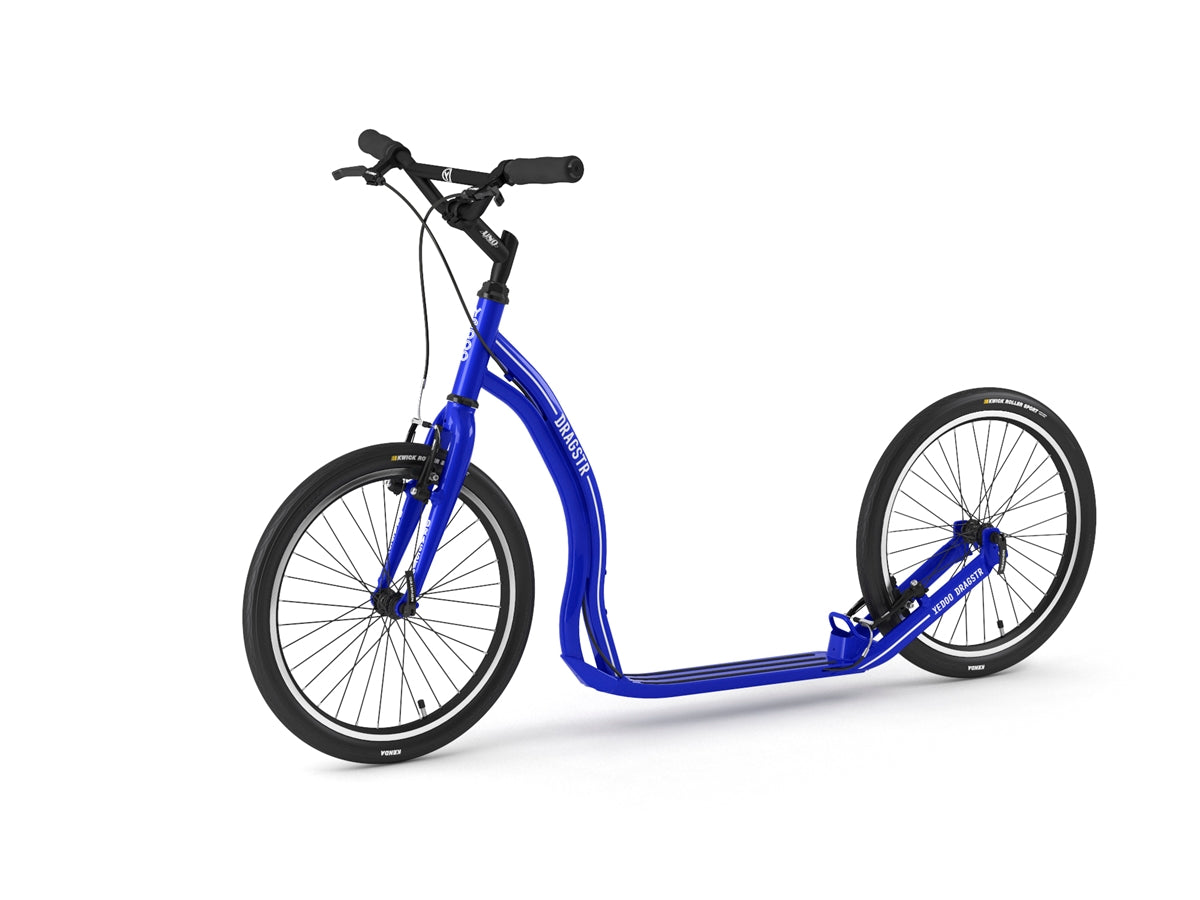

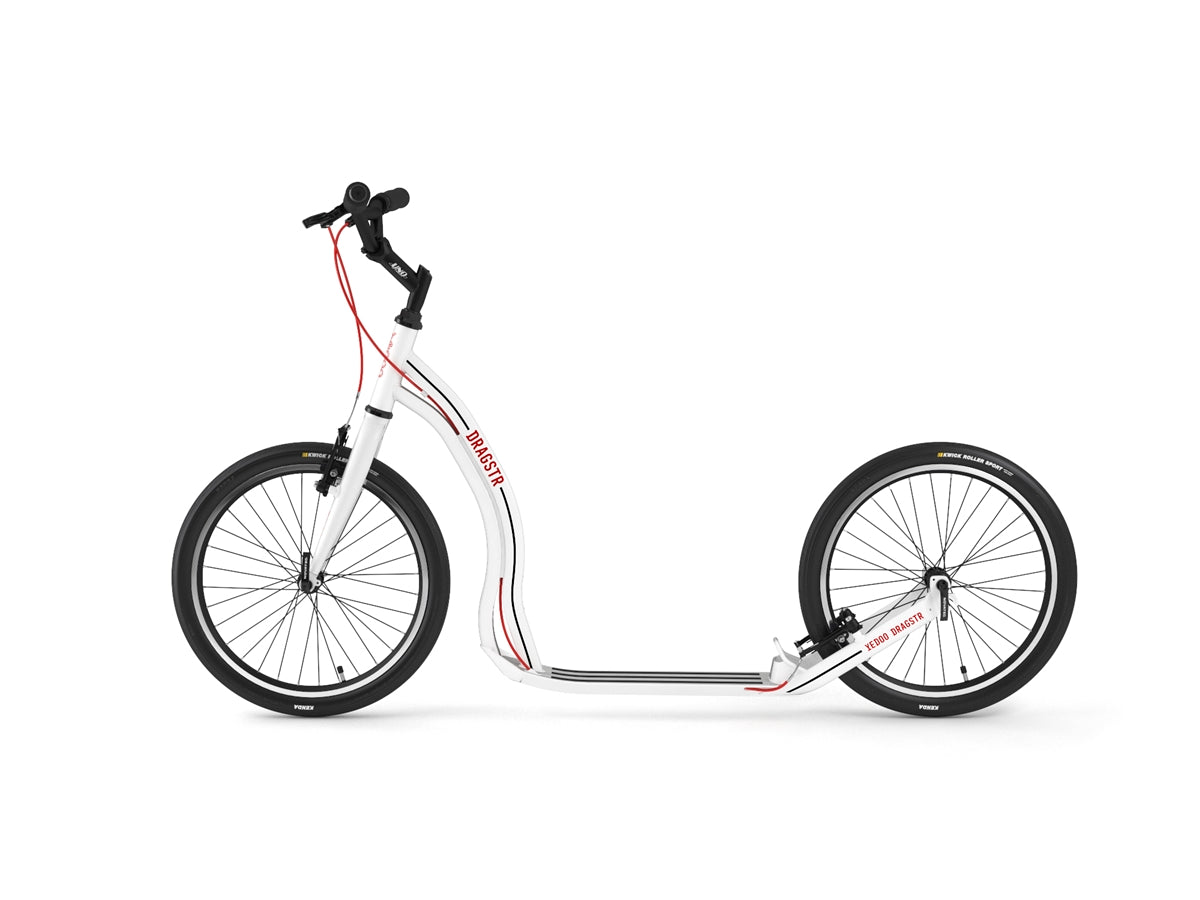

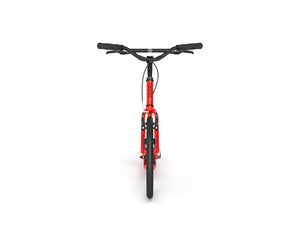

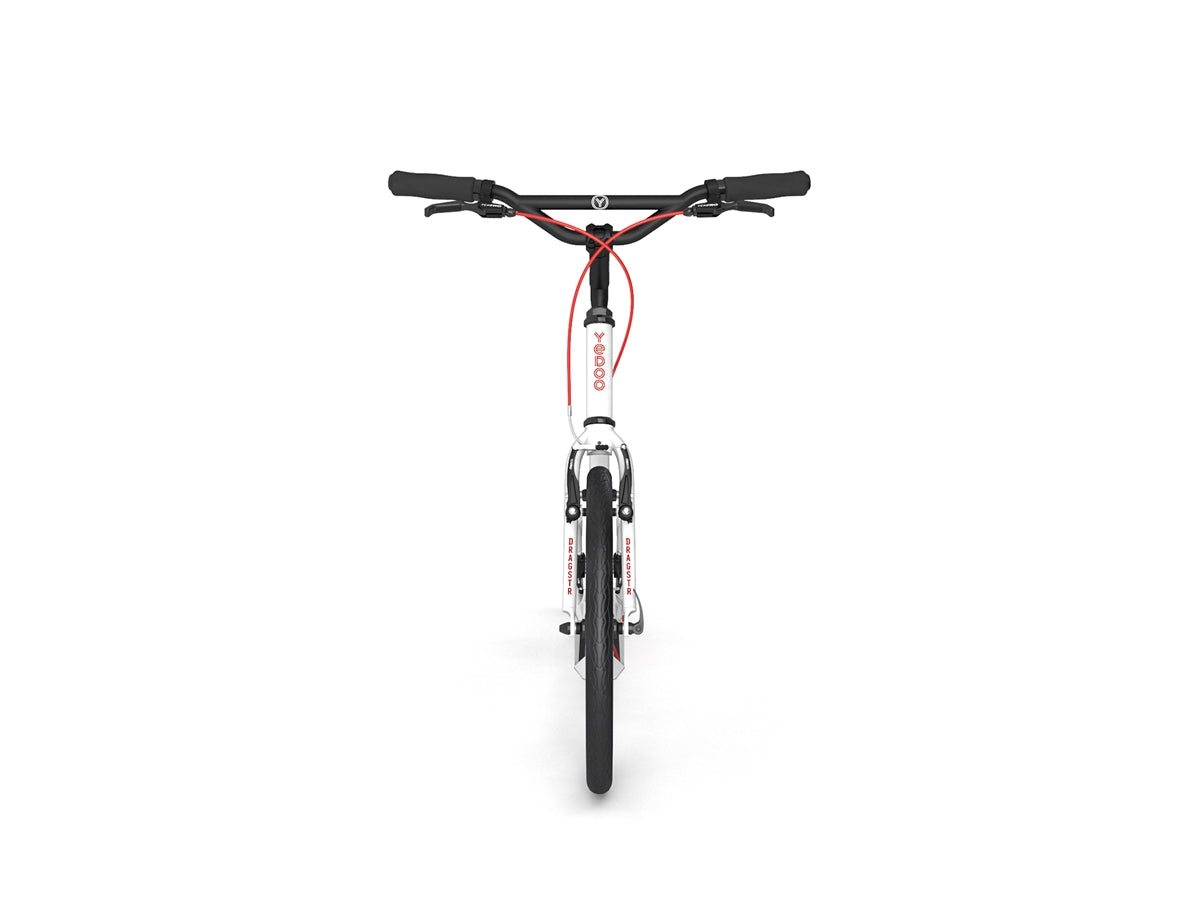

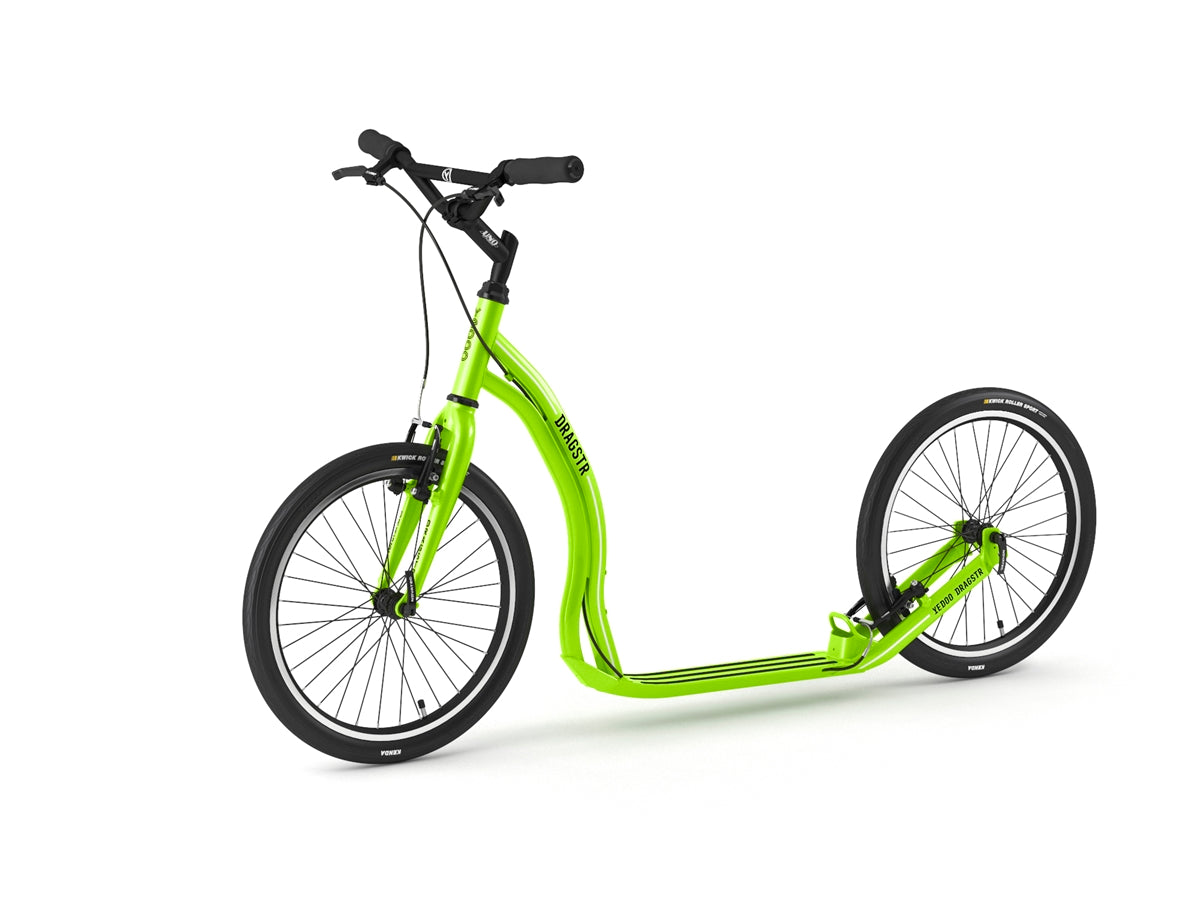

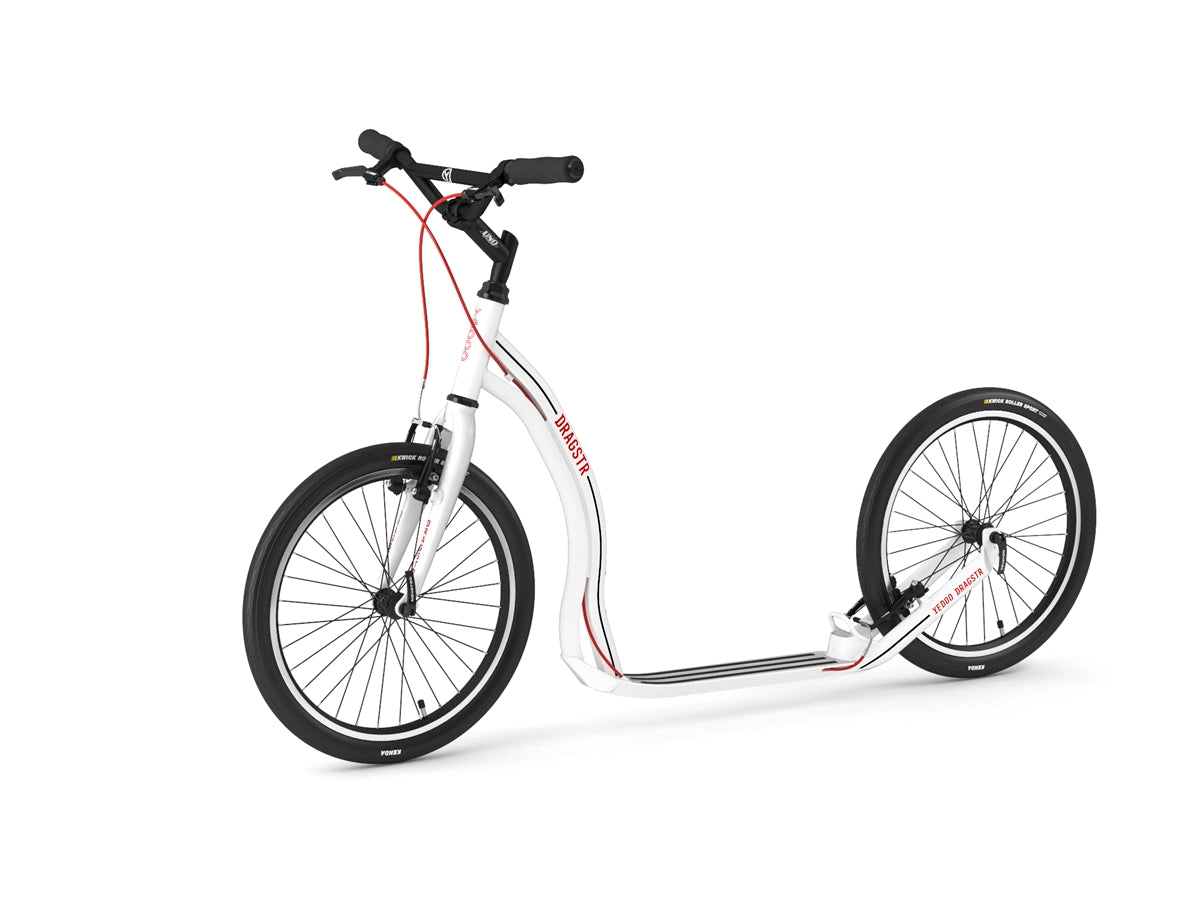

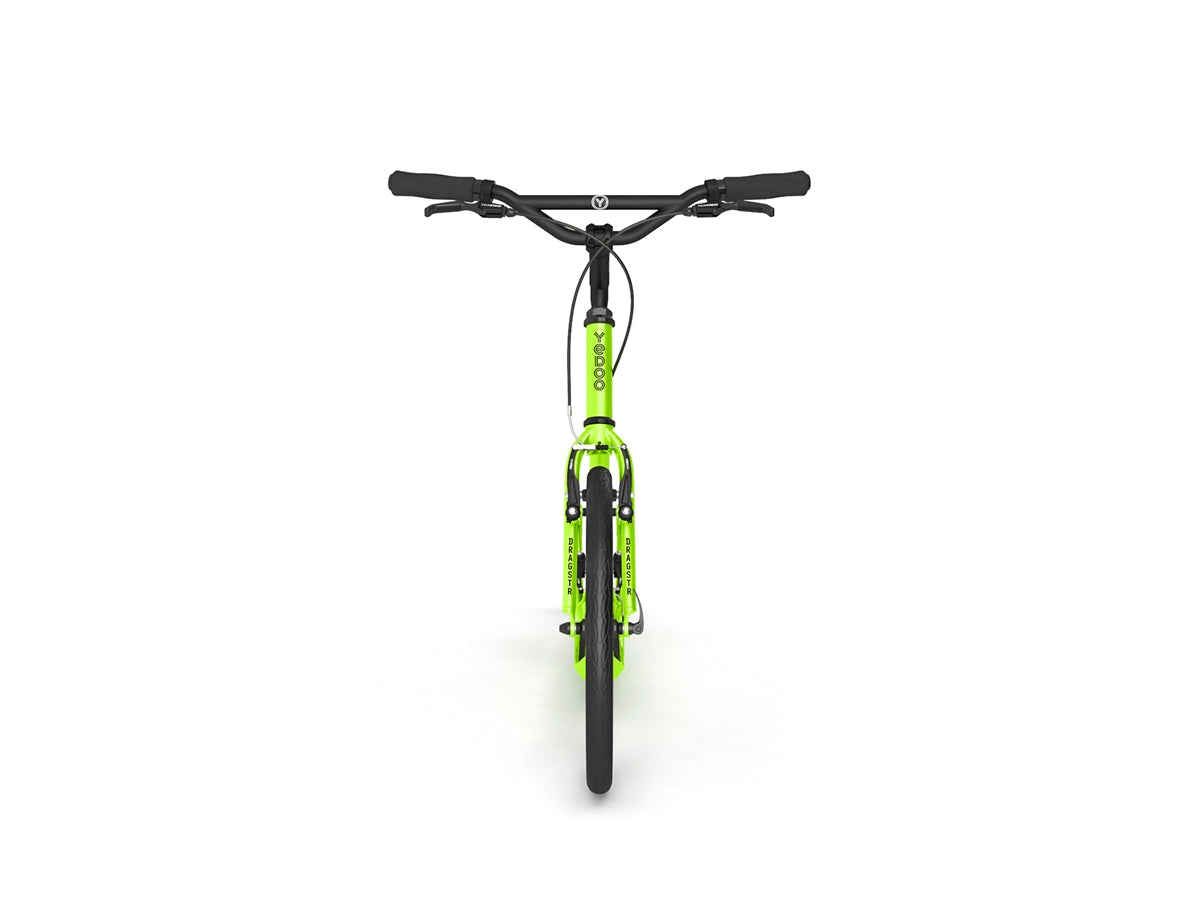

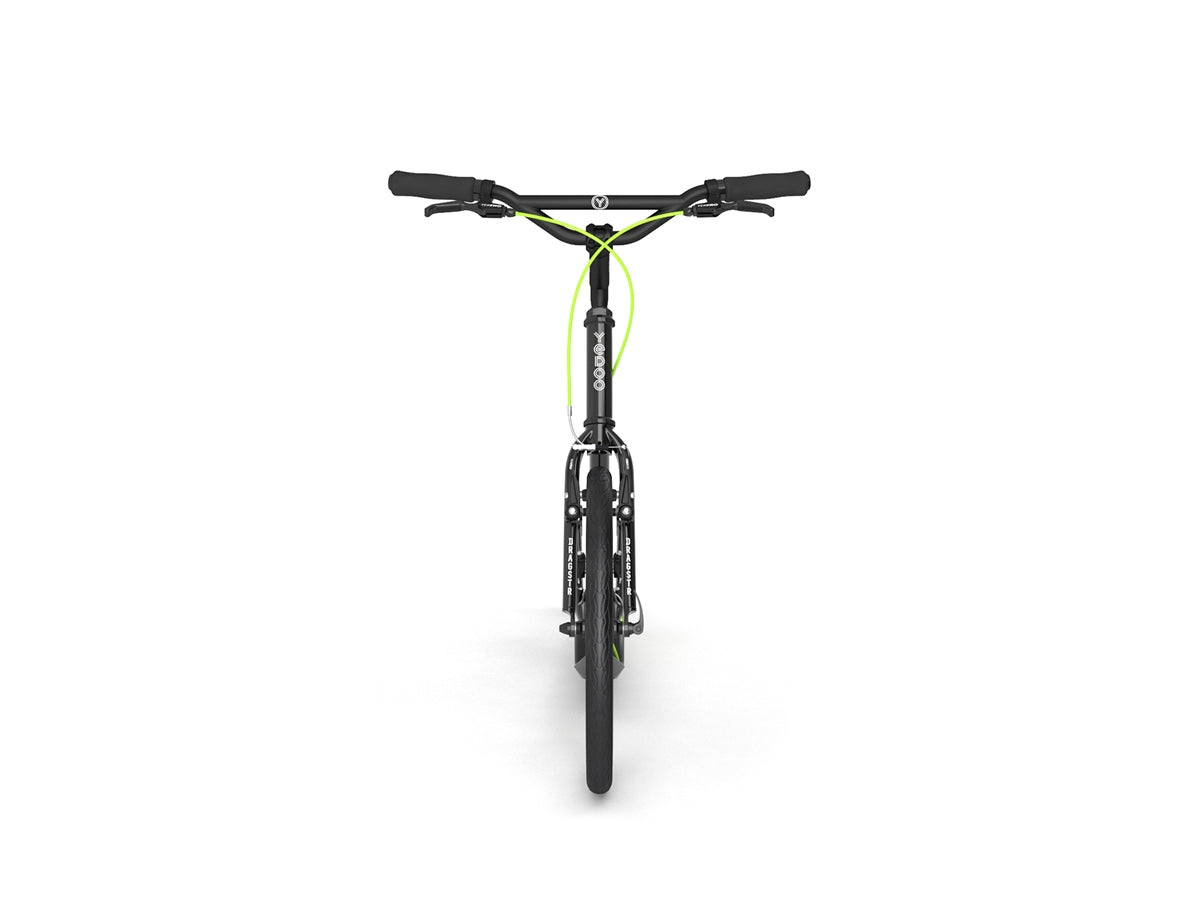

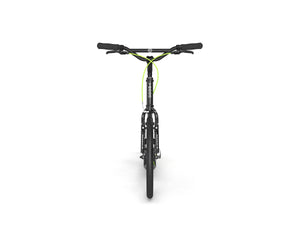

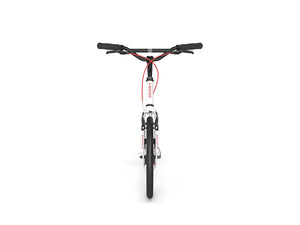

Dragstr is fast, light and compact as a pocket knife. You won’t find these characteristics in any other scooter. Its premium components are similar to Rodstr, but the larger rear wheel make Dragstr even faster. In spite of this, the total weight is almost the same. It flies like a dragon.
-
Technical details
-
Product number12703 - Y30
-
Loading limit150 kg / 330 lb
-
Min. height of rider150 cm / 59 in
-
Weight (with/without kickstand)7,4 kg / 16.3 lb
-
Box size111 x 68 x 14,5 cm (43.7 x 26.8 x 5.7 in)
-
Box weight9,8 kg / 21.6 lb
-
FrameYEDOO alloy II.
-
ForkYEDOO alloy II.
-
StemUNO alloy
-
HandlebarYEDOO Cross alloy
-
GripsXHH foam V3
-
Bar endsOptional
-
HeadsetNECO alloy 1 1/8" threaded
-
Brake leversTEKTRO ML 520 alloy
-
Brakes (front/rear)102mm "V" TEKTRO alloy / 102mm "V" TEKTRO alloy
-
Wheels20" / 20"
-
RimsHJC alloy double wall + CNC milled braking surface
-
HubsNOVATEC
-
Hub width (front/rear)74 / 74 mm // 2.9 / 2.9 in
-
Preparation for using flat screws (front/ rear)Yes / Yes
-
BearingsIndustrial
-
Quick-release levers (front/rear)Yes / Yes
-
Tyres (front/rear)KENDA (60TPI, kevlar guard)
-
Max. inflation (front/rear)7 bar / 7 bar
-
Preparation for bottle holder1x
-
KickstandOptional
-
Reflective elementsOn the front fork.
-
Dimensions
-
[1] Length159 cm / 62.6 in
-
[2] Footboard40 cm / 15.7 in
-
[3] Handlebar height90 - 95 cm / 35.4 - 37.4 in
-
[4] Width of handlebars64 cm / 25.2 in
-
[5] Ride height (higher/lower position)*4,0 / 6,0 cm // 1.6 / 2.4 in
-
[6] Distance between footboard and ground (higher/lower position)*6,7 / 8,7 cm // 2.6 / 3.4 in
-
[7] Room for rider64 cm / 25.2 in
-
*Tolerance +-0.2 cm
-
Documents, standards and certificates
-
Manual
-
Norms
-
Testing authoritySZÚ, s. p.
-
-
We don’t just brag that our products have performance and quality built to last – we’ve proved it by extending the full warranty to 3 YEARS! More
-
Yedoo frames are protected by registered EU industrial designs. The Yedoo brand, along with the trade names of each model, are trademark protected.
-
Change of technical parameters reserved.
